A New Concept in Scalable Power

Aspect Labs introduces a new generation of hybrid inverter technology, built for the realities of modern energy systems — flexible, powerful, compact, and ready for anything.

Whether you're powering an off-grid homestead, managing industrial loads, or integrating into a utility-scale energy project, our modular system adapts to your needs with hands-off intelligence and unmatched reliability.

Developed by a team of engineers with deep experience in automotive, telecommunications, and power electronics, our system is designed and manufactured in Australia to the highest standards of security, performance, and integration.

How it works

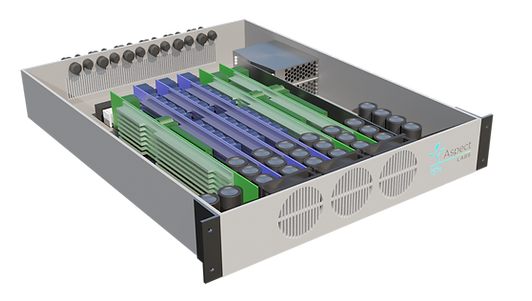

Six slots to customise to your needs

Inside every Aspect Labs inverter unit are six independent module slots — ready to be configured with any combination of inverter or solar modules. This modular approach means you can tailor the system to your site, whether you need more power, more solar, or a balance of both. Start with what you need now — and expand later with a simple plug-in upgrade.

Key Aspects of the Hybrid System

Modular Design Power That Grows With You

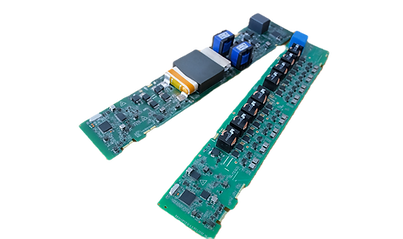

Each 4 kW inverter module is a building block. Add modules to scale — up to 24 kW in a single box, or link boxes together for even more capacity.
Add up to six inverters or solar modules per box, mix and match to suit your site.
Our system stacks easily — small footprint, high performance, and in a convenient standard rack mount.
Rack-mounted with our batteries, reducing footprint and simplifying installation.

Smarter Solar Independent Strings, Smarter Layouts

Each solar module is its own 4 kW MPPT, giving you true independence across multiple PV arrays.
Easily support east-west solar layouts or stagger installations over time.
No string interference, no compromise, just clean, efficient generation.
Isolated PV inputs mean simpler compliance and lower install costs, no earth frames required.

Intelligent Simplicity
Hands-Off, High Reliability

Seamless transition to backup during mains outages — no buttons, no delays.
In a compact form that’s light enough for a single-person lift.
Industrial-grade reliability and embedded cyber security, designed and supported in Australia.
Compatible with generators.

High Voltage, Low Fuss: Smarter Integration

Engineered for high-voltage lithium battery packs - the same as trusted in electric vehicles.
Easier DC Wiring – Higher voltage means lower current, allowing for lighter gauge cables and smaller DC breakers.
Lower Installation Costs – Reduced cable sizes and protection gear translate directly into cost savings and faster installs.
Optimised System Efficiency – High-voltage operation reduces losses and improves overall system performance.

Native High-Voltage Battery Integration

Operating directly from a battery, our system eliminates the need for complex internal DC-DC converters used in conventional designs. This means:

Higher overall efficiency
Lower cost, less complexity, and fewer points of failure

Purpose-built for high-voltage battery systems and the future of energy storage.

Seamless Rack Integration

Mechanically, the inverter is housed in a compact 2U rack-mount enclosure, matching the form factor of the battery modules. That means:

Clean, Professional Installations – No bulky wall mount gear with complex wiring runs.
Shared Racking with Batteries – Simply slide the inverter module into the same rack as the battery system – no separate area for the inverter modules.
Minimal Footprint – Save valuable space in electrical rooms, enclosures, or off-grid power rooms.

This elegant integration reduces labour, and helps you deliver cleaner, more professional installations — whether you're deploying one system or scaling up to many.

Sure-Tripᵀᴹ Superior Fault-Clearing Capability

Safety and compliance are non-negotiable — and our hybrid inverter delivers on both. Unlike many conventional inverters, the Aspect system is engineered to drive into a short circuit and guarantee circuit breaker operation.

Breaker-Tripping Assurance – Our inverter delivers the high continuous fault current needed to reliably trip overcurrent protection devices, just like a traditional grid connection.
Safer Installations, Faster Fault Resolution – By ensuring that breakers trip as designed, the system enables rapid fault isolation, protecting equipment and personnel.

This advanced capability is just one more way the Aspect hybrid inverter system brings grid-grade performance to every installation

Many Inverters, One Seamless System

Our platform is made up of multiple inverter modules — but they don’t just work side by side. They work together as one smart, unified system.

No matter how many modules you add, the system stays perfectly in balance, automatically ensuring each provides its share of the load. You get:

Effortless scalability – start small or go big, with smooth upgrades as your energy needs grow.
Consistent, reliable power – even when loads change or conditions vary.
Fast, stable performance – no clashes between modules, just clean, coordinated power.

It’s a smarter approach to modular design — giving you the simplicity of one system, with the flexibility of many.

Built for Integration
Built to Last

This isn’t a “me-too” inverter — it’s a rethinking of what distributed energy needs to be: robust, scalable, and easy to live with. We’ve engineered a single, compact power module to be repeatable and expandable. Aspect Labs’s platform scales seamlessly — from small commercial to megawatt-class systems.

Off-Grid and On-Grid
Backup Power
Agricultural and Remote Infrastructure
Resorts, Homesteads, SWER Replacement
Commercial and Light Industrial
Utility Integration

Why Choose Aspect Labs

Our Advantages

Simplicity

Simple to install, commission and operate. Elegant, neat solution with the inverter installed in the same rack as the batteries.

PulseLinkᵀᴹ

PulseLink™ is our proprietary high-speed digital control bus that enables multiple inverter modules to operate as one — seamlessly, efficiently, and intelligently. PulseLink™ enables effortless scalability.

High Voltage

Low current, high voltage makes installation simply easier with smaller and lower cost cables and breakers.

High Power Density

Our inverter delivers industry-leading high power density, packing more power into a smaller, lighter footprint for space-saving solutions.
